6 - digit LCD display, with power prompt, communication network signal status display

Panel display and zero clearing function through magnet

Using the latest microprocessor technology, lithium-ion battery power supply, ultra-low power consumption operation

The TCP/IP protocol is embedded and the time is synchronized with the Internet

Good temperature characteristics, operating temperature range -30-80 degrees

Support data storage, data reissue function, special upper computer software set parameters

· Product profile

GPRS wireless pressure transmitter is an intelligent wireless pressure transmitter integrated with high sensitivity pressure and temperature detection components developed by the company for market demand. This product uses high precision signal conditioning circuit, low power management, rich LCD display interface and GPRS wireless remote data communication in one of the high performance intelligent transmission device, using the GPRS network of public mobile operators to provide users with reliable wireless long distance data transmission function, is the best means to monitor the process signal.

· Product features

1, using the latest microprocessor technology, lithium-ion battery power supply, ultra-low power consumption operation.

2, 6-digit LCD display, with power prompt, communication network signal state display

3, good temperature characteristics, working temperature range -30-80 degrees.

4, through the magnet panel display and zero clearing function

5, through the panel USB interface, you can set the working state of the transmitter and factory calibration.

6. Multi-point linear calibration, zero and full degree transfer function

7, embedded TCP/IP protocol, and Internet time synchronization

8, support data storage, data reissue function, special upper computer software to set parameters

9, with high stability and anti-reverse connection, anti-surge and other anti-interference protection measures

10. The contact part with the medium is stainless steel, and the interface forms are various

11. The electronic shell is made of aluminum alloy, and the protection grade of the shell is IP67

12, explosion-proof products meet the requirements of GB3836.4 standard ExiaIICT6, obtained the explosion-proof certificate

13, industrial quality assurance, stable and reliable performance

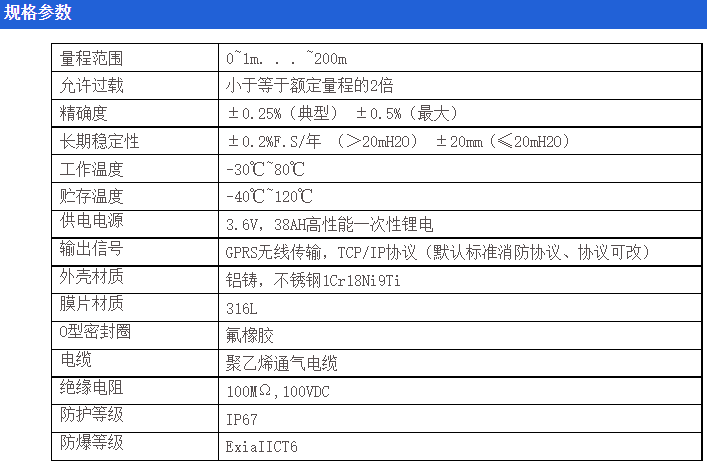

· Technical parameters

Power supply: 38AH high-performance disposable lithium battery

Input physical quantity: liquid level

Parameter setting: Set various parameters by USB on the panel

Working mode: Periodic active reporting. The sampling interval and reporting interval can be set

Measuring range: 0 ~ 200m

Accuracy levels: 0.1, 0.2, 0.25, 0.3, 0.5

Overload allowed: less than or equal to twice the rated range

Working environment: temperature -30 ~ 80℃, humidity: < 90%
